NFPA 70E 2018 – An Overview of 4 Different Arc Flash PPE Categories

An unfortunate truth about Arc Flash incidents is that they can occur regardless of training. Without proper protective measures, workers are left exposed to dangerous conditions and have to suffer the consequences. Every year, more than 2,000 people are admitted to burn centers with severe arc-flash burns.

While arc-flash cannot be completely eliminated, there are steps we can take to prevent it. The single most important measure is placing the equipment in a “Safe Working Conditions” If it is more dangerous to turn the equipment off, workers should wear appropriate Personal Protective Equipment (PPE).

Arc flash PPE is required by NFPA 70E (2018) as per 130.7:


“Employees exposed to electrical hazards when the risk associated with that hazard is not adequately reduced by the applicable electrical installation requirements shall be provided with, and shall use, protective equipment that is designed and constructed for the specific part of the body to be protected and for the work to be performed.”




Importance of Arc Flash Hazard Analysis – Is Arc Flash Study Crucial in Power Systems Industries?

We had previously written an article about the importance of Arc Flash Hazard Analysis. If you haven’t checked it out, please click below. It will help you to grasp the information available in this article easily.



NFPA 70E (2018) has identified various Flame Resistant Hazardous Risk Category levels. These are broken down into a total of four categories, ranging in severity from 1 to 4.

LEVEL 1 CONTAINS THE LEAST PPE, WHILE LEVEL 4 CONTAINS THE MOST.

For example, working with low-voltage wiring with minimal likelihood of an arc flash occurring would not require extensive PPE. On the other hand, working on a high-voltage machine involves a very serious risk of an arc flash, so a category 4 rated PPE is likely going to be needed in this case.

Each category includes the minimum Arc Rating value for the required PPE, which represents the amount of incident energy (in cal/cm^2, or calories of heat energy per square centimeter) on a fabric or material that carries a 50% probability of causing a second degree skin burn injury.

In other words, you have a 50% chance of being burned if exposed to an electric arc with the same number of calories of heat. The arc rating indicates the level of protection provided by Flame Resistant (FR) clothing measured in cal/cm^2. The higher the value the greater the protection.

A brief overview of each of these four PPE Categories is explained below:

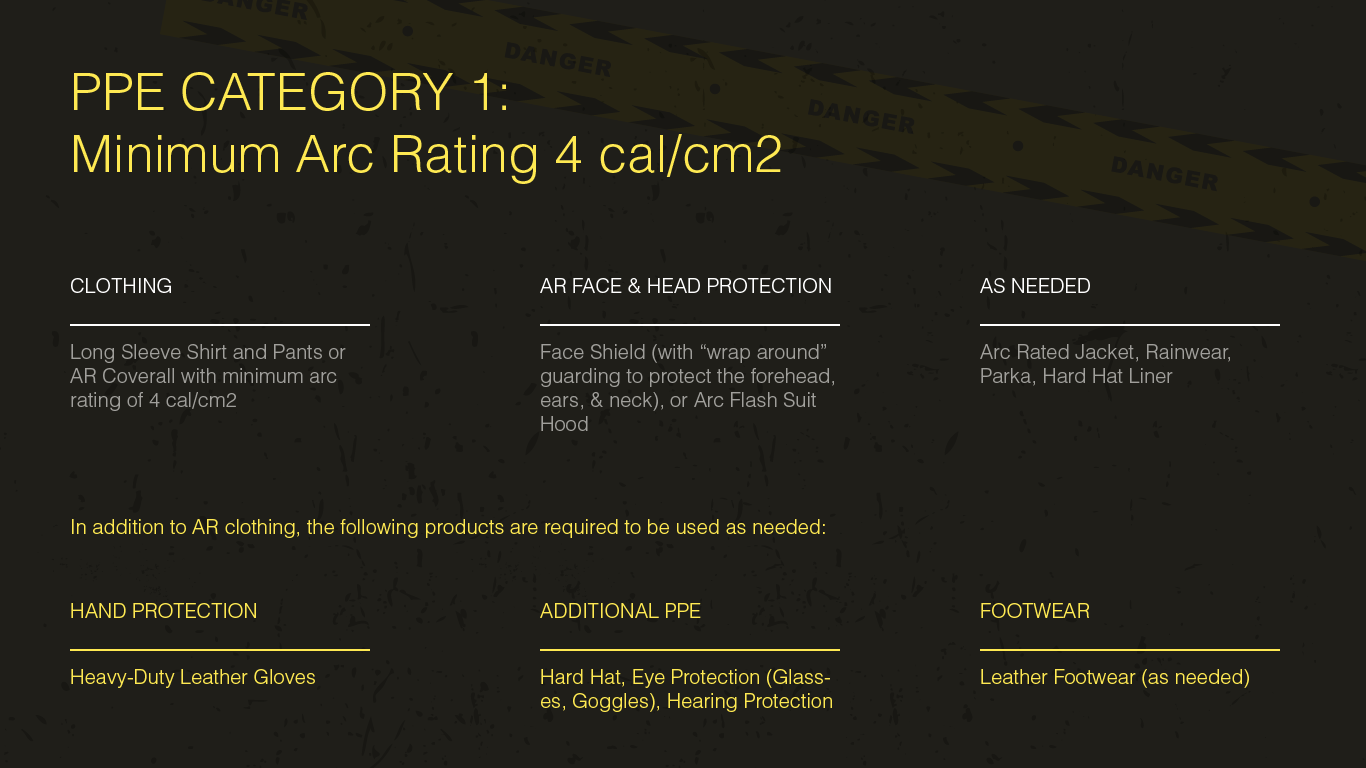

PPE Category 1:

The first category represents the lowest level of Arc Rated PPE, requiring only a single layer of arc-rated PPE.

Workers need the following clothing:


Arc Flash Labels

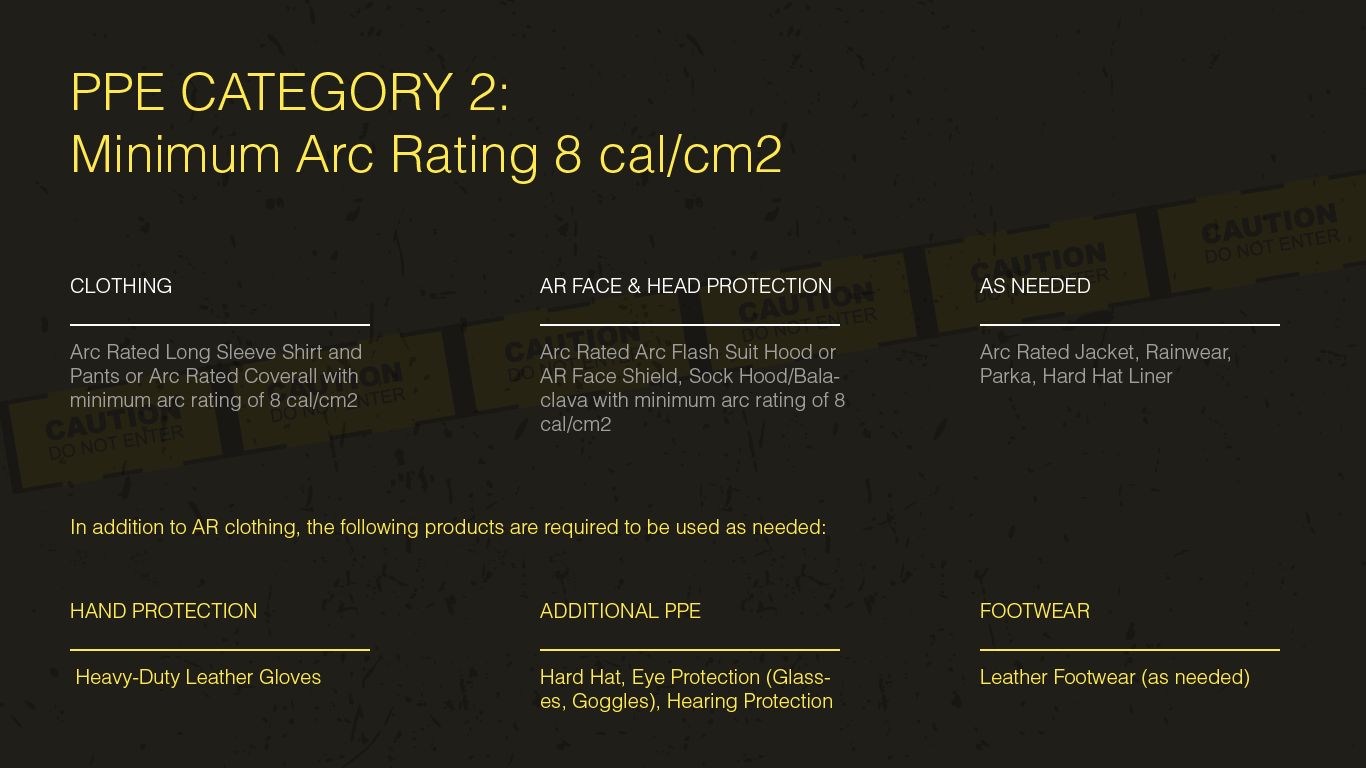

PPE Category 2:

The second category can also be fulfilled with a single layer of Arc Rated PPE.

In PPE Category 2, workers need the following clothing:


Arc Flash Labels

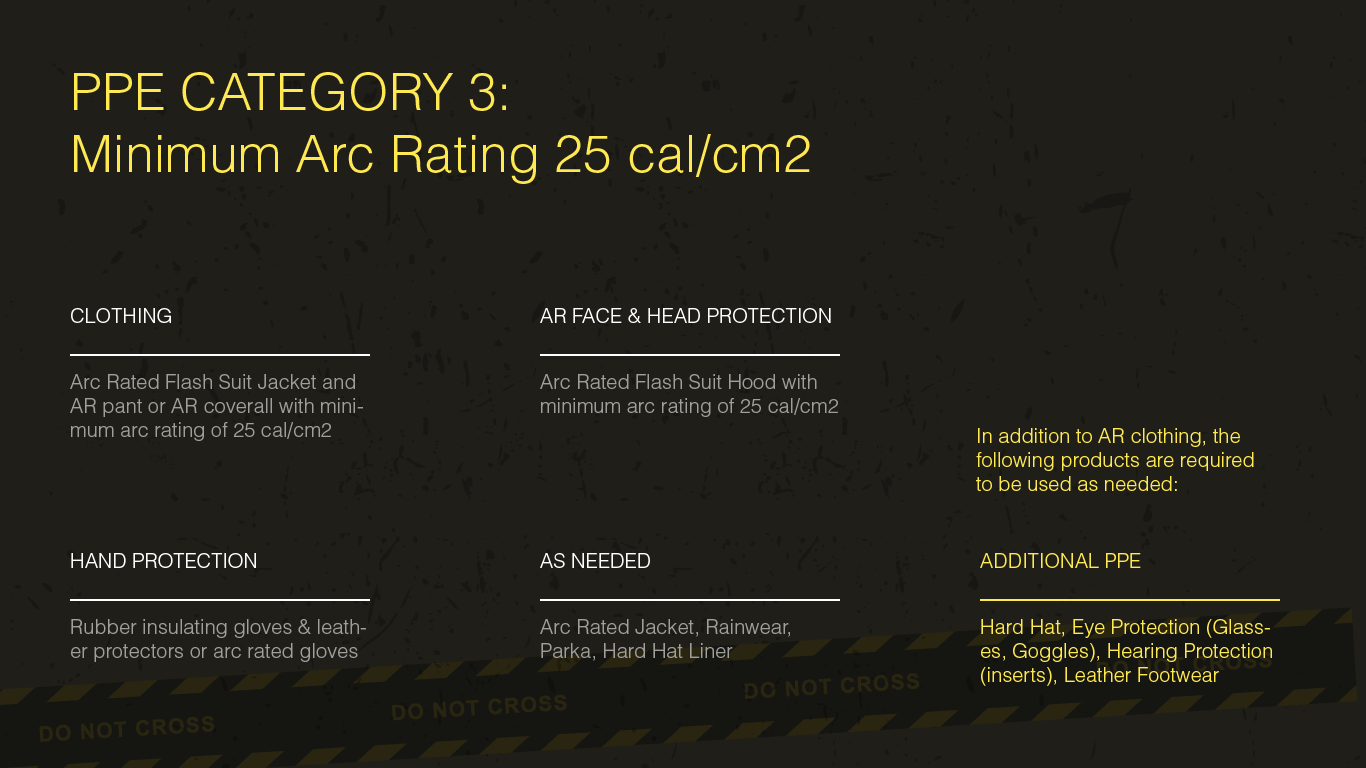

PPE Category 3:

PPE Category 3 and 4 require additional layers of PPE. Arc flash suit hoods are required and rubber insulating gloves and leather protectors, or arc-rated gloves are required.

For PPE Category 3, workers need the following clothing:


Arc Flash Labels

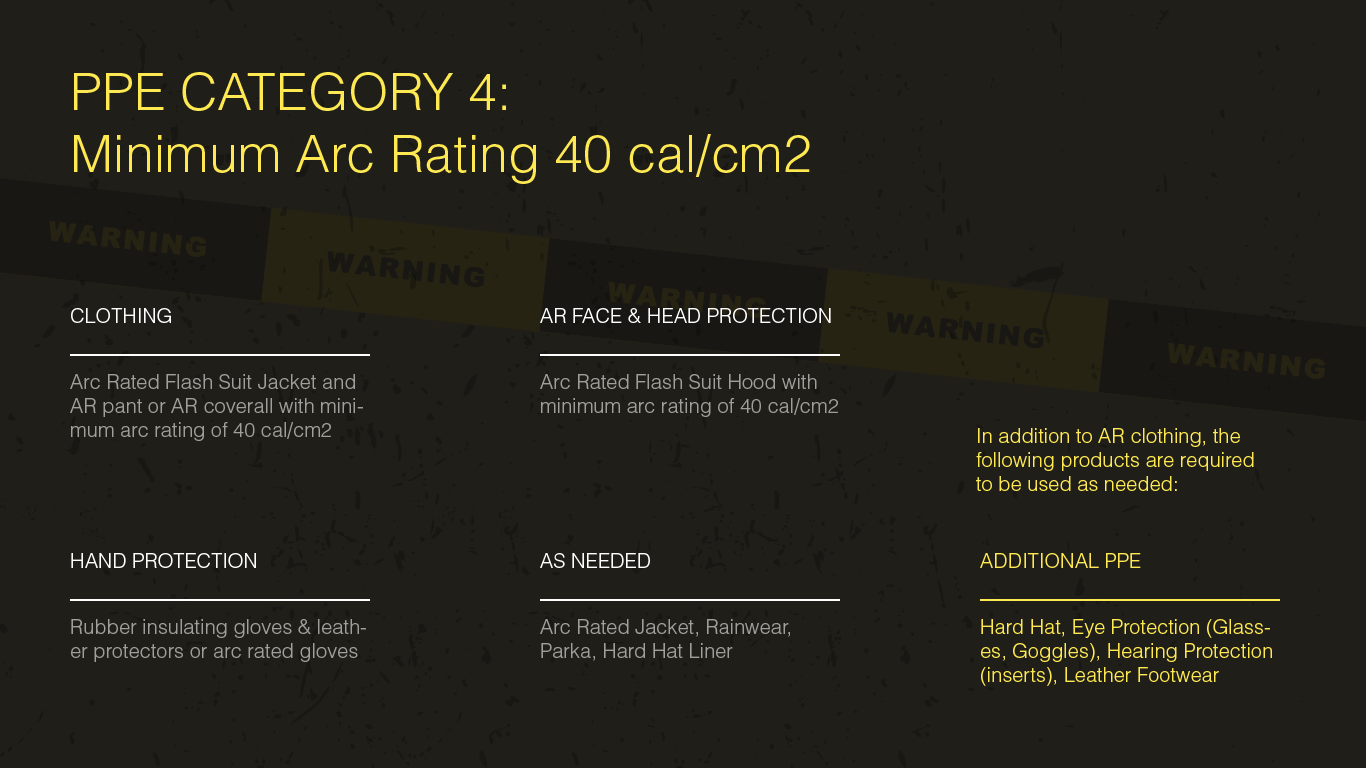

PPE Category 4:

The final PPE Category requires AR clothing with a minimum rating of 40 cal/cm^2:


Arc Flash Labels

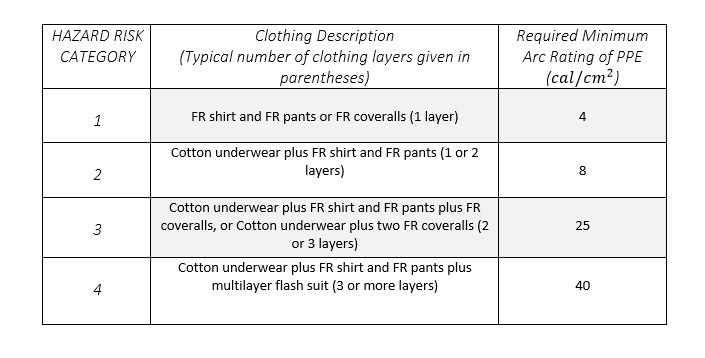

The categories of PPE as described in NFPA 70E are summarized as follows:


Arc Flash Labels
